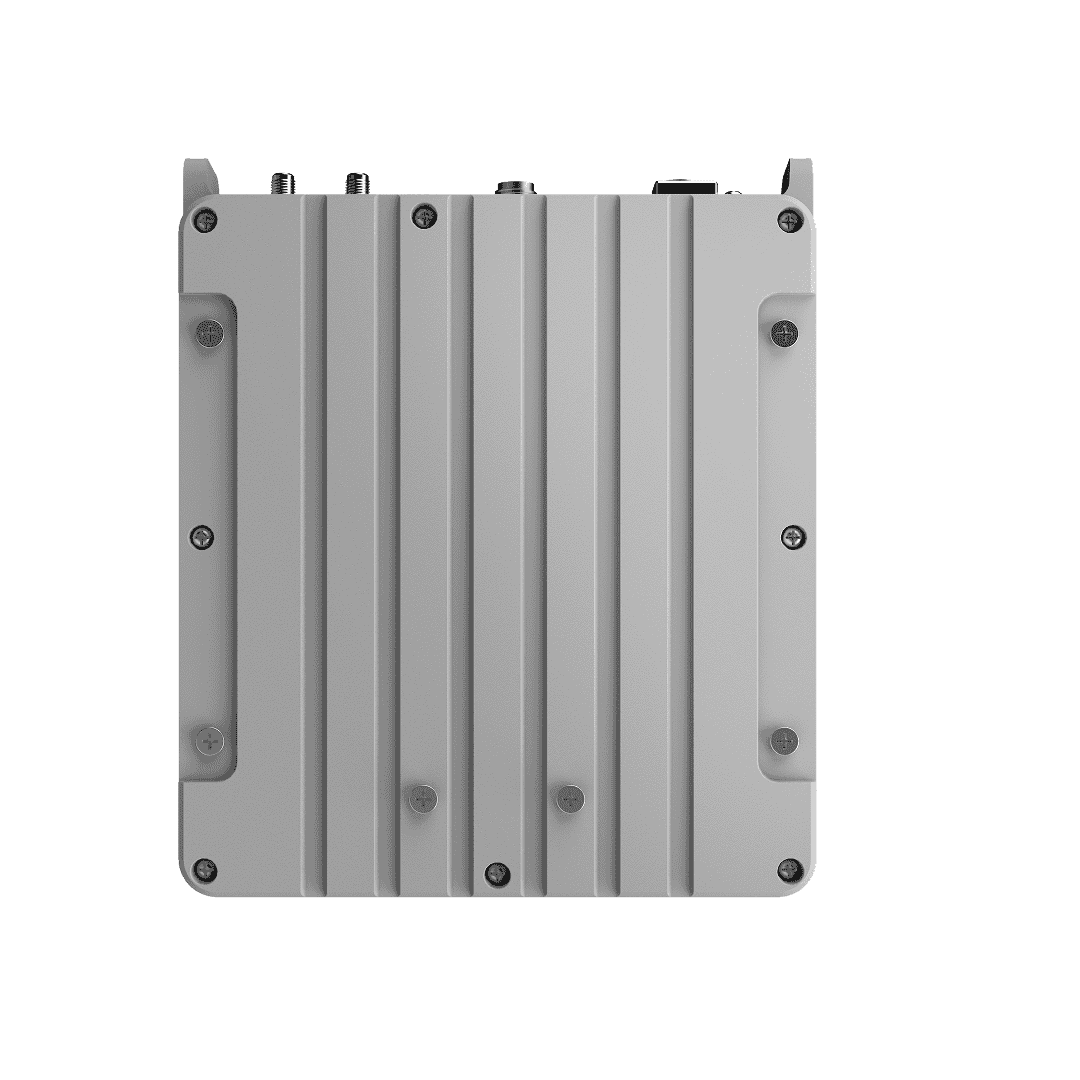

TR09N is an industrial-grade GNSS receiver purpose-built for 7*24 continuous operation in demanding infrastructure and monitoring environments. Engineered for CORS networks and deformation monitoring, TR09N combines full-constellation tracking capability, robust wireless connectivity, an intuitive web management interface, and generous onboard data storage into a single, rugged device.
1040 channels All constellations
H: 2.5mm + 0.5ppm V: 5mm + 0.5ppm
2.5W typical 20+ working hours
RJ45 + LTE + UHF + Wi-Fi + BT
Powered by a high-performance GNSS engine, TR09N provides native support for 1040 channels and more than 20 frequency bands.
One device for worldwide deployment, TR09N with built-in global 4G LTE module supports major frequency bands worldwide.
Only 2.5W power consumption (typical), designed for remote and unattended applications, TR09N delivers exceptional energy efficiency.
Flexible expansion for smart applications, TR09N provides multiple interfaces supporting various external devices with stronger scalability.
Specifications
| Satellites tracking | Channels: 1040 |
| GPS: L1C/A, L1C, L2C, L2P(Y), L5 | |
| Beidou: B1I, B2I, B3I, B1C, B2a, B2b | |
| GLONASS: G1, G2,G3 | |
| Galileo: E1, E5a, E5b, E6 | |
| QZSS: L1C/A, L1C, L2C, L5,L6 | |
| NavIC: L5 | |
| SBAS: L1C/A | |
| Initialization time | Typically < 8 seconds |
| Initialization reliability | > 99.9% |
| Real-time kinematic (RMS) | Horizontal: 8 mm + 1 ppm |
| Vertical: 15 mm + 1 ppm | |
| Post-processing static (RMS) | Horizontal: 2.5 mm + 0.5 ppm |
| Vertical: 5 mm + 0.5 ppm |
| Input/output ports |

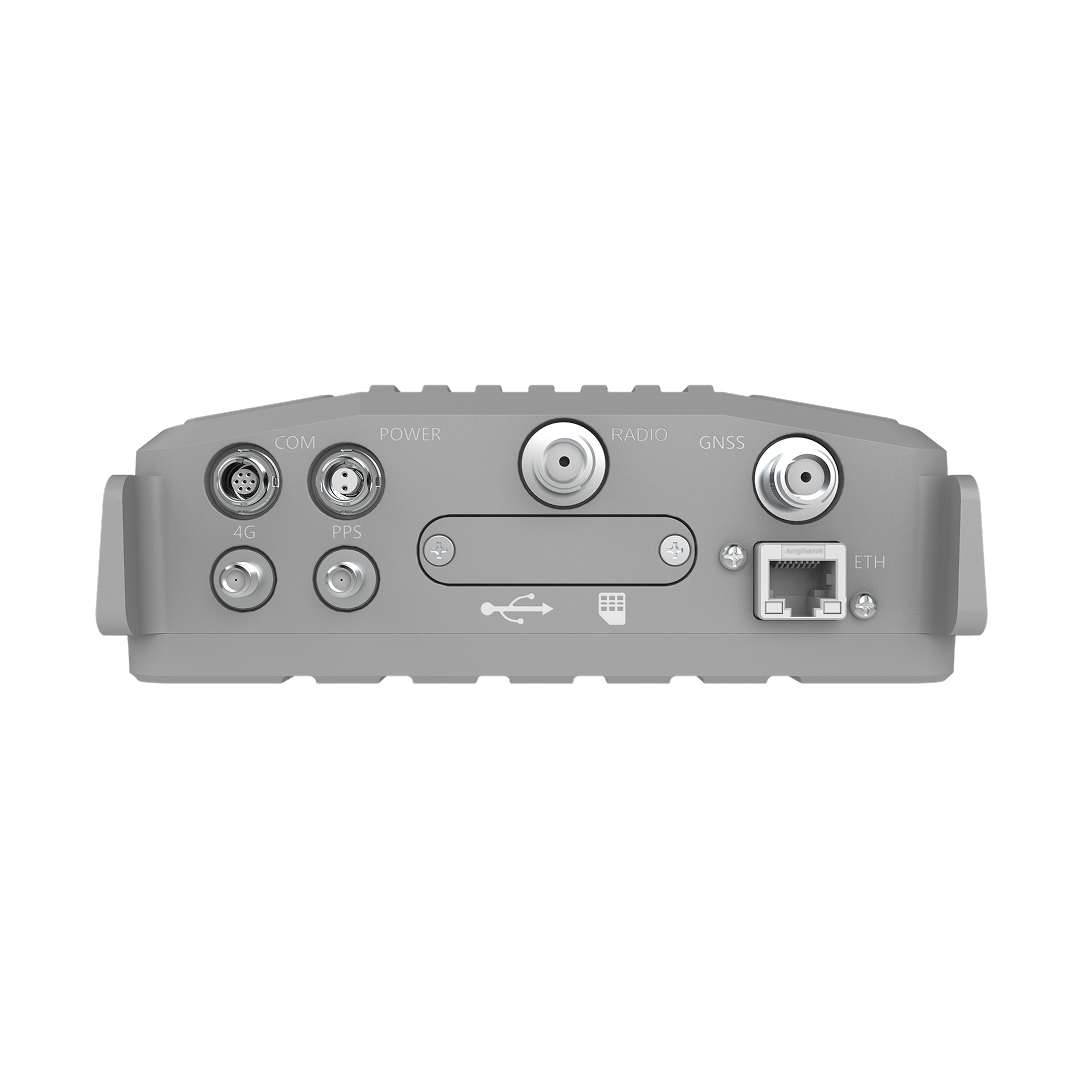

1 x 9-pin LEMO, 1 x 2-pin LEMO, 1 x USB, 1 x RJ45, 1 x TNC GNSS antenna, 1 x SMA LTE antenna, 1 x SMA radio antenna, 1 x SIM card slot, 1 x PPS interface |
| Web UI | Support |
| Wi-Fi | 2.4G/5G, 802.11 a/b/g/n/ac |
| Bluetooth | V4.1 |
| LTE | FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66 |
| TDD: B34/38/39/40/41 | |
| WCDMA: B1/2/4/5/6/8/19 | |
| GSM/EDGE: B2/3/5/8 | |
| UHF radio | Internal Tx/Rx: 410 - 470 MHz |
| Protocol: TRIMTALK, TRANSEOT, TRIMMARK3 | |
| Power: 0.5W，1W | |
| Link rate: 9,600 bps to 19,200 bps | |
| Range: Typical 3km, up to 5 km with optimal conditions | |
| Data formats | Correction data: RTCM2.x, RTCM 3.x |
| Data outputs: RINEX 2.11, 3.02, 3.04, NMEA 0183 | |
| Output Frequency: 20Hz | |
| Data storage | 32 GB (Optional) |
| Size (L x W x H) | 185mm×160mm×55mm |
| Weight | 1.45 kg |
| Buttons | Power, ESC/Return, Enter/Confirm, Arrows x 4 |
| LED indicators | 4 LEDs indicating power supply, satellite tracking, network and datalink |

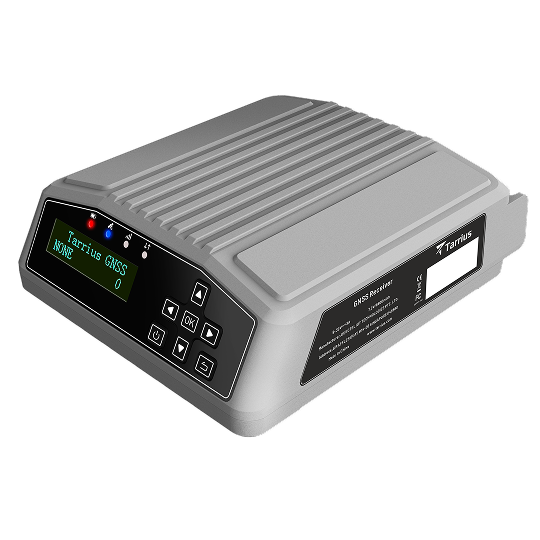

| Front panel | OLED display |
| Power Consumption | 2.5 W |
| Internal Battery | 6800 mAh, 7.2 V |
| Operating time | 20 h |
| External power | 9 - 36 V DC |
| Temperature | Operating: -40℃ to +65℃ |
| Storage: -45℃ to +80℃ | |
| Humidity | 95% non-condensation |
| Ingress protection | IP67 |
| Impact protection | IEC 60068-2-27 |
