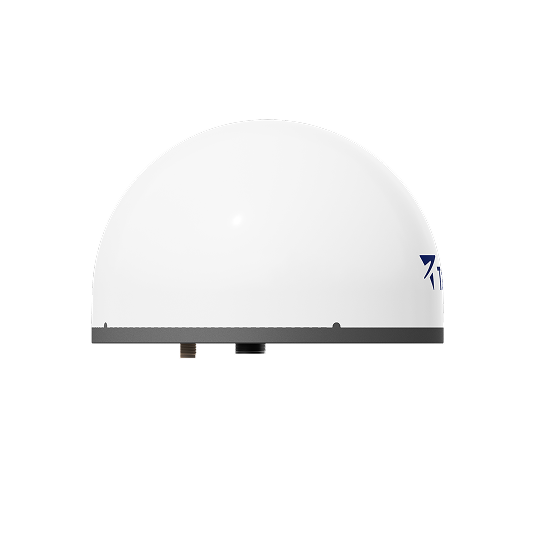

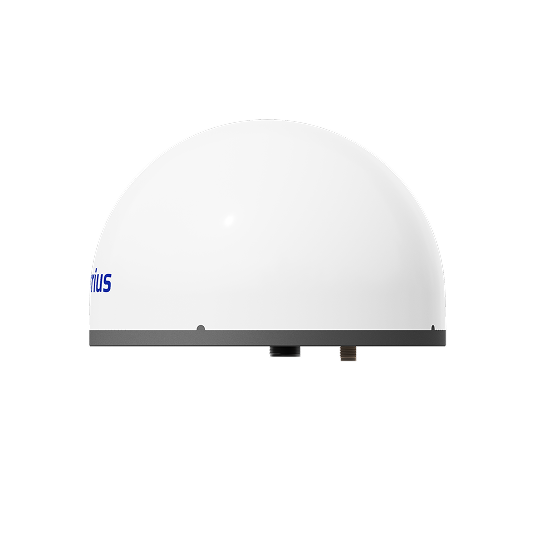

TR07B is a high-performance GNSS receiver purpose-built for continuous, reliable operation in demanding positioning and infrastructure applications. Engineered as a versatile base station, TR07B combines full-constellation, multi-frequency tracking, robust multi-interface connectivity, intuitive web-based management, and a rugged IP67-rated design into a compact and energy-efficient solution.
All constellations 1040 Channels
H: 2.5mm + 0.5ppm V: 5mm + 0.5ppm
2.5W typical 20+ working hours
Cellular / Wi-Fi / Sub-GHz RS232 / RS485 / Ethernet
Combines GNSS module, cellular/Wi-Fi communication and antenna systems. It has extension slots to support additional short-range communication for Sub-GHz
Quad-band L1/L2/L5/E6 GNSS receiver supports 1040 channels, multi-constellation, which allows simultaneous reception of all constellations.
Only 2.5W power consumption (typical), designed for remote and unattended applications, TR07B delivers exceptional energy efficiency.
Supports local Wi-Fi WebUI and remote cloud configuration, simplified field installation, flexible expansion for smart applications
Specifications
| GPS | L1 C/A, L2C, L5 |
| GLONASS | L1, L2 |
| Galileo | E1, E5a, E5b, E6 |
| BDS |
B1I, B1C, B2a, B2b, B3I
|
| QZSS |
L1 C/A, L2C, L5
|
| NavIC | L5 |
| Tracking Channels | 1040 |
| Cold Start (TTFF) | < 50 s |
| Cellular | LTE-FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66 LTE-TDD: B34/38/39/40/41 WCDMA: B1/2/4/5/6/8/19 GSM: GSM850/EGSM900/DCS1800/PCS1900 |
| Wi-Fi | Wi-Fi (Range ≤10m, access point mode, Web user interface) |
| Sub-GHz | Sub-GHz (Range ≤1km) |
| Ethernet | Ethernet port (HTTPS, NTRIP, Web user interface) |
| RS-485 | RS-485, supporting Modbus protocol sensor access |
| RS-232 | RS-232, supporting NMEA 0183 and RTCM 3.x protocols output |
|
Power input
|
DC: 9–36 V Typical value: 12 V
|
|
Power consumption
|
≤ 2.5 W typical
|
|
LED indicator lights
|
3
|
|
SIM card slot
|
1 nanoSIM
|
|

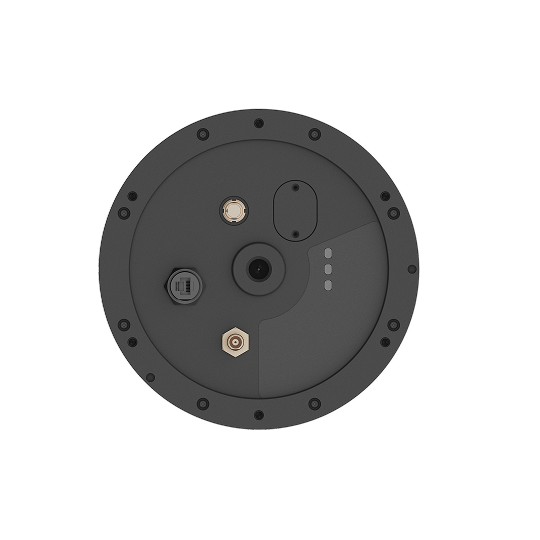

Connector |
1 LEMO connector (power input, RS-232, RS-485)
1 RJ45 connector
1 TNC connector for short-range
|
|
Dimensions
|
Φ220 × 149 mm
|
| Net Weight | 2.1 kg |
|
Operating temperature
|
-30 °C to +60 °C
|
|
Storage Temperature
|
-30 °C to +80 °C
|
|
Humidity
|
0–95 % RH
|
|
ESD protection
|
Contact discharge: ±8 kV, air discharge: ±15 kV
|
|
Protection rating
|
IP67 |
