• Data controller

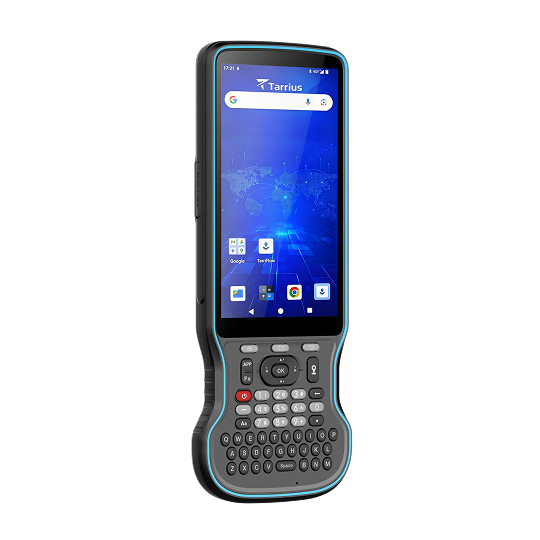

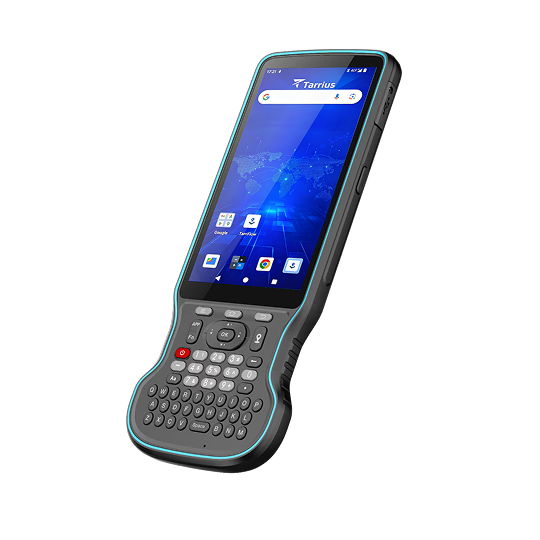

TC120

Data controller

Professional android data controller designed for one-handed use and comprehensive protection

DISPLAY and OS

5.5" 1080P Android 14 GMS

INTERACTION

QWERTY keyboard Customizable side keys

DURABILITY

IP68 protection 1.5 m drop resistance

CONNECTIVITY

Bluetooth 5.0 · Wi-Fi 4G global · NFC · Dual SIM

TC120
TC120
TC120
TC120
Android 14 ecosystem

Android 14 ecosystem

Native Android 14 system with Google Mobile Services, allowing TarriFlow and 3rd-party apps to run seamlessly on the same device.

  • Core platform
Sunlight readable

Sunlight readable

5.5" touch screen brings clear, detailed visuals even under strong sunlight, and enables smooth operation in diverse conditions.

  • 5.5" / curtis keypad
All-day battery

All-day battery

9000 mAh Li-ion battery provides 22 hours of continuous field operation, ensures your task without frequent recharging.

  • 9000mAh / 22 h
Rugged design

Rugged design

IP68 dust/waterproof, 1.5 m drop resistance, -20°C to +60°C operating temperature range — designed for the harsh environments.

  • IP68 / 1.5 m drop

Specifications

Technical specifications

  • System
  • Physical
  • Sensors
  • Communication
Operating System Android 14 GMS
CPU MTK G85 octa-core 2.0 GHz
RAM 4GB
ROM 64GB

Memory card

MicroSDHC up to 256 GB
Size (L x W x H) 226mm × 91mm × 17mm
Weight 412 g (battery included)

Temperature

Operating: -20°C to +65 °C

Storage: -30°C to +70°C

Ingress protection IP68
Humidity 95% non-condensation

Shock and vibration

1.5 m drop resistance (4 corners, 6 sides) Marble

Display

5.5" IPS LTPS LCD capacitive multi-touch

Resolution: 1920 * 1080

Brightness: 500 nit

Keypad Qwerty keypad
Li-ion battery capacity 9000 mAh
Operation time 18-22 h typical
Charging time 3 h (90%)
GNSS Built-in standard GNSS (BDS, GPS, GLONASS) A-GPS
Camera

13 MP Primary Camera, supporting high-speed autofocus and AR

Gyroscope  Support
E-compass Support
Light sensor  Support
Speaker  120dB High-Fidelity Speaker
Microphone Support

SIM Card Type

Nano-SIM card, Dual SIM, Single Standby

Network modem

GSM:  850/900/1800/1900

WCDMA: B1/B2/B4/B5/B8

LTE-TDD: B34/B38/39/B40/B41

LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 /B13/B17/B20/B25/B26/B28/B66

Wi-Fi

802.11 a/b/g/n/ac

Access point mode (2.4 G / 5G)

Bluetooth

5.0

USB

Type C, OTG supported

NFC

Support
